My step by step guides for SDL3 to build for Android and WebAssembly

8Observer8 · August 23, 2024, 2:22pm

A new version: Deploying SDL3 app on Android using SDL3-x.y.z.aar

8Observer8 · August 14, 2025, 2:34pm

New version for SDL 3.3: Setting Up SDL 3.3 for Android Development

Result of testing: Discord

Testing of the GitHub - madebr/sdlcross: Little SDL application buildable on Desktop + Android example with SDL3 Renderer API that shows squares when we touch the screen:
sdlcross-SDL3-Aug-14-2025

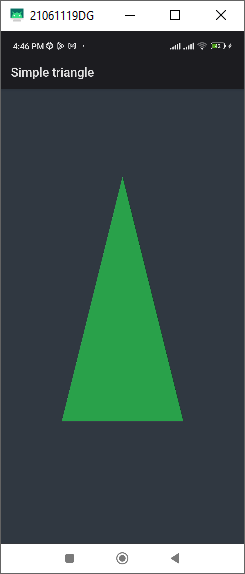

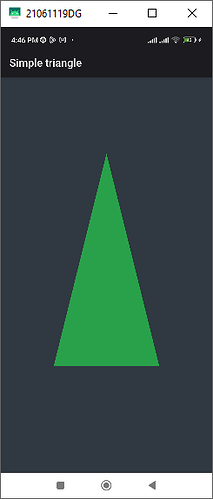

Example in pure OpenGL ES 2.0 that draws a simple green triangle:

I used the https://github.com/Genymobile/scrcpy app to create a screenshot on PC using USB cable from the phone.

8Observer8 · September 3, 2025, 9:56am

Added the following info to the guide: Setting Up SDL 3.3 for Android Development

Important! The project name in CMakeLists.txt:

# Declare the project
project(my-project)

Must be the same as the project name in the .java file located at app\src\main\java\com\example\sdlcross, inside the getLibraries() method:

package com.example.sdlcross;

import org.libsdl.app.SDLActivity;

public class MyActivity extends SDLActivity {
    protected String[] getLibraries() {
        return new String[] { "my-project" };
    }
}

8Observer8 · September 16, 2025, 4:20pm

There is my mistake above. The executable name should be the same with the return new String[] { "sdlcross" };:

Important! The executable name in CMakeLists.txt:

add_executable(sdlcross src/main.c)

Must be the same as the project name in the .java file located at app\src\main\java\com\example\sdlcross, inside the getLibraries() method:

package com.example.sdlcross;

import org.libsdl.app.SDLActivity;

public class MyActivity extends SDLActivity {
    protected String[] getLibraries() {
        return new String[] { "sdlcross" };
    }
}

Note. The SDL 3.3 is not release yet. I call the currect master branch like 3.3.

8Observer8 · June 20, 2026, 12:08pm

Drawing a triangle using SDL3 (OpenGL, WebAssembly)

Guide: Setting up SDL3 with OpenGL ES 3.0 for WebAssembly

Source code: C, C++

Note. You can disable multisampling if you delete this code:

    SDL_GL_SetAttribute(SDL_GL_MULTISAMPLEBUFFERS, 1); // Enable MULTISAMPLE
    SDL_GL_SetAttribute(SDL_GL_MULTISAMPLESAMPLES, 2); // can be 2, 4, 8 or 16

Note 2. There is no difference between 2 and 4 (value of multisampling) at least in this triangle.

Drawing a rotated rectangle using `cglm` (OpenGL, WebAssembly)

Guide: Setting up cglm with SDL3 and OpenGL ES 3.0 for WebAssembly

Source code: C, C++

Size of the Release build - 942 KB:

8Observer8 · June 22, 2026, 2:53pm

Drawing a texture using `SDL3_image` (OpenGL, WebAssembly)

Guide: Setting up SDL3_image with OpenGL ES 3.0 (Wasm)

Source code: C, C++

image380×380 1.17 KB

Drawing a texture using `stb_image` (OpenGL, WebAssembly)

Guide: Setting up stb_image with OpenGL ES 3.0 (Wasm)

Source code: C, C++

8Observer8 · June 23, 2026, 4:12pm

Rendering a text using `SDL3_ttf` (OpenGL, WebAssembly)

Guide: Setting up SDL3_ttf (OpenGL, WebAssembly)

Source code: C, C++

Size of the Release build - 1.81 MB:

Asset: LiberationSans-Regular.ttf file - 401 KB (link)

8Observer8 · June 25, 2026, 11:56am

[Workaround] Background music looping in Wasm (SDL3_mixer)

I’ve been running into an issue where MIX_SetTrackLoops(..., -1) doesn’t loop background music infinitely in my Wasm/Emscripten build:

The Issue: The track stops after it completes its first run, and the loop command is ignored:

SDL_AppResult SDL_AppEvent(void *appstate, SDL_Event *event)
{
    App *myApp = (App *)appstate;

    // Handle initial music trigger on any input
    bool isInput = (event->type == SDL_EVENT_KEY_DOWN ||
                    event->type == SDL_EVENT_MOUSE_BUTTON_DOWN);

    if (!myApp->musicStarted && isInput)
    {
        MIX_SetTrackLoops(myApp->musicTrack, -1); // -1 loops infinitely, 0 disables looping
        MIX_PlayTrack(myApp->musicTrack, 0);
        myApp->musicStarted = true;
    }

The Workaround: You must create an explicit options packet using SDL_CreateProperties(), assign your infinite loop instruction to MIX_PROP_PLAY_LOOPS_NUMBER, and feed that packet into MIX_PlayTrack:

SDL_AppResult SDL_AppEvent(void *appstate, SDL_Event *event)
{
    App *myApp = (App *)appstate;

    // Handle initial music trigger on any input
    bool isInput = (event->type == SDL_EVENT_KEY_DOWN ||
                    event->type == SDL_EVENT_MOUSE_BUTTON_DOWN);

    if (!myApp->musicStarted && isInput)
    {
        // Create an options configuration packet
        SDL_PropertiesID props = SDL_CreateProperties();

        // Pack the "infinite loop" instruction (-1) into the container
        SDL_SetNumberProperty(props, MIX_PROP_PLAY_LOOPS_NUMBER, -1);

        // Hand the configuration properties over to SDL3_mixer
        MIX_PlayTrack(myApp->musicTrack, props);

        // Clean up the handle container (SDL copies properties internally)
        SDL_DestroyProperties(props);

        myApp->musicStarted = true;
    }

    // Handle rest of events...
    return SDL_APP_CONTINUE;
}

8Observer8 · June 26, 2026, 2:19am

Playing a background music and sound effect using `SDL3_mixer` (OpenGL, WebAssembly)

Guide: Setting up SDL3_mixer (OpenGL, WebAssembly)

Source code: C, C++

Release build size:

C and C++ Release builds has the same sizes - 4.18 MB:

Asset sizes:

Winds Of Stories.ogg - 2.43 MB
Picked Coin Echo 2.wav - 296 KB (after Audacity conversion)

8Observer8 · June 28, 2026, 7:09pm

Playing a background music and sound effect using `OpenAL` (OpenGL, WebAssembly)

Guide: Setting up OpenAL (OpenGL, WebAssembly)

Source code: GitHub Repository

Release build size - 3.84 MB:

Asset sizes:

Winds Of Stories.ogg - 2.43 MB
Picked Coin Echo 2.wav - 296 KB (after Audacity conversion)

8Observer8 · July 7, 2026, 8:02am

Read comments:

if (EMSCRIPTEN)
    target_link_options(app PRIVATE
        "-Oz"                   # Optimize for smallest code size (aggressively strips metadata and optimizes for binary footprint).
        "-sMALLOC=emmalloc"     # Use 'emmalloc', a smaller, simpler memory allocator suitable for memory-constrained web apps.
        "-sUSE_SDL=0"           # Disable the legacy Emscripten-provided SDL1/SDL2 port (allows using custom or system-integrated SDL3).
        "-sMAX_WEBGL_VERSION=2" # Limit the maximum WebGL context version to 2.0.
        "-sMIN_WEBGL_VERSION=2" # Set the minimum required WebGL version to 2.0 (disallows fallback to 1.0).
        "-sFULL_ES3=1"          # Enable full WebGL 2.0 / OpenGL ES 3.0 feature set support.
    )
endif()

Short comments:

if (EMSCRIPTEN)
    target_link_options(app PRIVATE
        "-Oz"                   # Maximize code size optimization
        "-sMALLOC=emmalloc"     # Use minimal memory allocator
        "-sUSE_SDL=0"           # Disable built-in SDL
        "-sMAX_WEBGL_VERSION=2" # Set WebGL 2.0 max
        "-sMIN_WEBGL_VERSION=2" # Require WebGL 2.0 min
        "-sFULL_ES3=1"          # Enable full GLES3/WebGL 2
    )
endif()

8Observer8 · July 8, 2026, 3:56pm

Failed to enable VSync on Intel(R) HD Graphics 630 (i7-7700)

I cannot enable it on Desktop:

    int status = SDL_GL_SetSwapInterval(1);
    if (status != 0)
    {
        SDL_Log("VSync failed: %s", SDL_GetError());
    }

Solution is to limit FPS:

SDL_AppResult SDL_AppIterate(void *appState)
{
    App *app = (App *)appState;

    // High-precision timing variables
    static Uint64 lastFrameTime = 0;
    const Uint64 targetFrameTimeNS = 16666666; // ~16.6ms for 60 FPS

    Uint64 now = SDL_GetTicksNS();

    // If we haven't hit the target time, yield the CPU
    if ((now - lastFrameTime) < targetFrameTimeNS)
    {
        // Sleep to yield control back to the Windows scheduler
        // This drops CPU usage from 15% to <1%
        SDL_Delay(1);
        return SDL_APP_CONTINUE;
    }

    // Update our last frame time
    lastFrameTime = now;

    glClear(GL_COLOR_BUFFER_BIT);

Before:

After:

P.S. I use the latest Intel drivers:

rtrussell · July 9, 2026, 7:16am

The thread is about building SDL3 ‘for Android and WebAssembly’ so when you say “on desktop” do you mean specifically when running in a browser, or more generally?

8Observer8 · July 9, 2026, 9:05am

I have moved this problem to the topic: Failed to enable VSync on Intel(R) HD Graphics 630 (i7-7700)

8Observer8 · July 27, 2026, 6:01pm

Android: Building SDL3_image from source to support WebP, BMP, JPG, and PNG formats

Download SDL3_image source code (the current release):

git clone -b release-3.4.4 https://github.com/libsdl-org/SDL_image.git C:\libs\SDL_image

Go to the source folder:

cd C:\libs\SDL_image

Open the C:\libs\SDL_image\build-scripts\release-info.json and enable WebP:

  "android": {
    "cmake": {
      "args": [
        "-DBUILD_SHARED_LIBS=ON",
        "-DSDLIMAGE_AVIF=OFF",
        "-DSDLIMAGE_BMP=ON",
        "-DSDLIMAGE_GIF=OFF",
        "-DSDLIMAGE_JPG=ON",
        "-DSDLIMAGE_JXL=OFF",
        "-DSDLIMAGE_LBM=OFF",
        "-DSDLIMAGE_PCX=OFF",
        "-DSDLIMAGE_PNG=ON",
        "-DSDLIMAGE_PNM=OFF",
        "-DSDLIMAGE_QOI=OFF",
        "-DSDLIMAGE_SVG=OFF",
        "-DSDLIMAGE_TGA=OFF",
        "-DSDLIMAGE_TIF=OFF",
        "-DSDLIMAGE_WEBP=ON",
        "-DSDLIMAGE_XCF=OFF",
        "-DSDLIMAGE_XPM=OFF",
        "-DSDLIMAGE_XV=OFF",
        "-DSDLIMAGE_SAMPLES=OFF",
        "-DSDLIMAGE_TESTS=OFF",
        "-DSDLIMAGE_VENDORED=ON"
      ]
    },

Download dependencies:

git submodule update --init external/libpng
git submodule update --init external/jpeg
git submodule update --init external/libwebp
git submodule update --init external/zlib

Build SDL3_image:

python build-scripts/build-release.py --force --actions download android --android-home "H:\AndroidSDK" --android-ndk-home "H:\AndroidSDK\ndk\27.0.12077973"

Result:

Discord post

8Observer8 · July 27, 2026, 10:09pm

WebAssembly: Building SDL3_image from source to support WebP, BMP, JPG, and PNG formats

Download SDL3_image source code:

git clone https://github.com/libsdl-org/SDL_image.git C:\libs\SDL_image
cd C:\libs\SDL_image

Download dependencies:

git submodule update --init external/libpng
git submodule update --init external/jpeg
git submodule update --init external/libwebp
git submodule update --init external/zlib

Configure SDL3_image in PowerShell:

emcmake cmake -S . -B dist `
  -DCMAKE_INSTALL_PREFIX="C:/libs/SDL3_image-devel-3.5.0-wasm" `
  -DSDL3_DIR="C:/libs/SDL3-devel-3.4.12-wasm/lib/cmake/SDL3" `
  -DCMAKE_BUILD_TYPE=Release `
  -DSDLIMAGE_VENDORED=ON `
  -DSDLIMAGE_BMP=ON `
  -DSDLIMAGE_JPG=ON `
  -DSDLIMAGE_PNG=ON `
  -DSDLIMAGE_WEBP=ON `
  -DSDLIMAGE_AVIF=OFF `
  -DSDLIMAGE_GIF=OFF `
  -DSDLIMAGE_JXL=OFF `
  -DSDLIMAGE_LBM=OFF `
  -DSDLIMAGE_PCX=OFF `
  -DSDLIMAGE_PNM=OFF `
  -DSDLIMAGE_QOI=OFF `
  -DSDLIMAGE_SVG=OFF `
  -DSDLIMAGE_TGA=OFF `
  -DSDLIMAGE_TIF=OFF `
  -DSDLIMAGE_XCF=OFF `
  -DSDLIMAGE_XPM=OFF `
  -DSDLIMAGE_XV=OFF `
  -DSDLIMAGE_SAMPLES=OFF `
  -DSDLIMAGE_TESTS=OFF

Build:

cmake --build dist -j8

Install:

cmake --install dist

Result:

Discord post

8Observer8 · July 27, 2026, 10:47pm

Windows (MinGW, static): Building SDL3_image from source to support WebP, BMP, JPG, and PNG formats

Download SDL3_image source code:

git clone https://github.com/libsdl-org/SDL_image.git C:\libs\SDL_image
cd C:\libs\SDL_image

Download dependencies:

git submodule update --init external/libpng
git submodule update --init external/jpeg
git submodule update --init external/libwebp
git submodule update --init external/zlib

Configure SDL3_image in PowerShell:

cmake -S . -B dist-static `
  -DCMAKE_INSTALL_PREFIX="C:/libs/SDL3_image-devel-3.5.0-mingw-static" `
  -DSDL3_DIR="C:/libs/SDL3-devel-3.4.12-mingw/lib/cmake/SDL3" `
  -DCMAKE_BUILD_TYPE=Release `
  -G "MinGW Makefiles" `
  -DBUILD_SHARED_LIBS=OFF `
  -DSDLIMAGE_VENDORED=ON `
  -DSDLIMAGE_DEPS_SHARED=OFF `
  -DSDLIMAGE_BMP=ON `
  -DSDLIMAGE_JPG=ON `
  -DSDLIMAGE_PNG=ON `
  -DSDLIMAGE_WEBP=ON `
  -DSDLIMAGE_AVIF=OFF `
  -DSDLIMAGE_GIF=OFF `
  -DSDLIMAGE_JXL=OFF `
  -DSDLIMAGE_LBM=OFF `
  -DSDLIMAGE_PCX=OFF `
  -DSDLIMAGE_PNM=OFF `
  -DSDLIMAGE_QOI=OFF `
  -DSDLIMAGE_SVG=OFF `
  -DSDLIMAGE_TGA=OFF `
  -DSDLIMAGE_TIF=OFF `
  -DSDLIMAGE_XCF=OFF `
  -DSDLIMAGE_XPM=OFF `
  -DSDLIMAGE_XV=OFF `
  -DSDLIMAGE_SAMPLES=OFF `
  -DSDLIMAGE_TESTS=OFF

Build:

cmake --build dist-static -j8

Install:

cmake --install dist-static

Result:

8Observer8 · August 9, 2026, 9:59pm

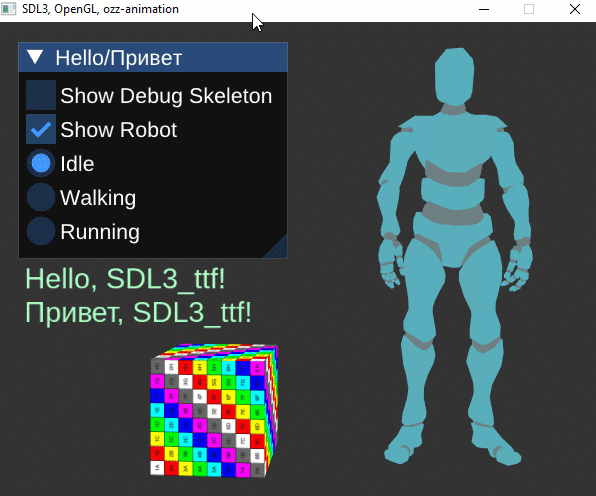

Animation switcher (C++, OpenGL, SDL3)

I use the ozz-animation library to switch between animations. The robot and animations were downloaded from Mixamo. I’ve built this example for Windows, Android, and WebAssembly.

View the Wasm Demo

Source code

Tools:
