Float pixel format

[silentstranger]

I’m trying to render a texture in SDL using SDL_PIXELFORMAT_RGB96_FLOAT. I use streaming texture and update its data using SDL_LockTexture. I get data from 2d array of vec3 which is an alias for three floats. Here are some snippets from my code:

...
typedef float vec3[3];
static SDL_Texture *texture = NULL;
...
struct
{
    ...
    vec3 cbuffer[480][640];
}
data;
...
int init(void)
{
    ...
    texture = SDL_CreateTexture(renderer, SDL_PIXELFORMAT_RGB96_FLOAT, SDL_TEXTUREACCESS_STREAMING, 640, 480);
    ...
}
...
int render(void)
{
    ...
    int pitch;
    void *pixels = NULL;
    SDL_LockTexture(texture, NULL, &pixels, &pitch);
    memcpy(pixels, data.cbuffer, 640 * 480 * sizeof(vec3));
    pitch = 640 * sizeof(vec3);
    SDL_UnlockTexture(texture);
    SDL_RenderTexture(renderer, texture, NULL, NULL);
    ...
}
...

However, for some reason, the colors for this texture are not displayed correctly. More specifically, only the white color is displayed.

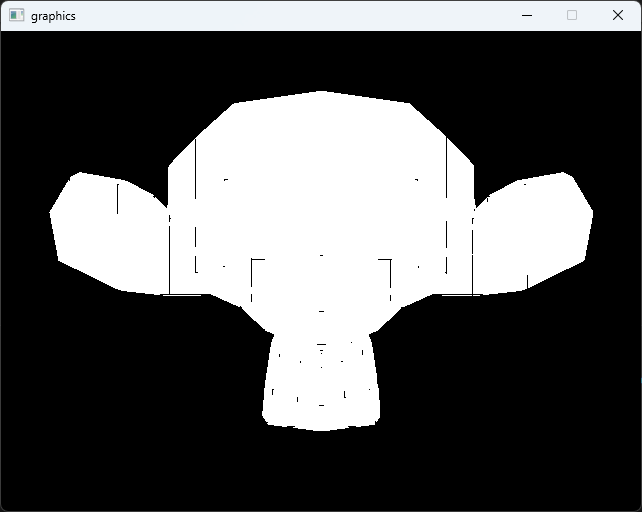

Here is what the texture looks like:

[silentstranger]

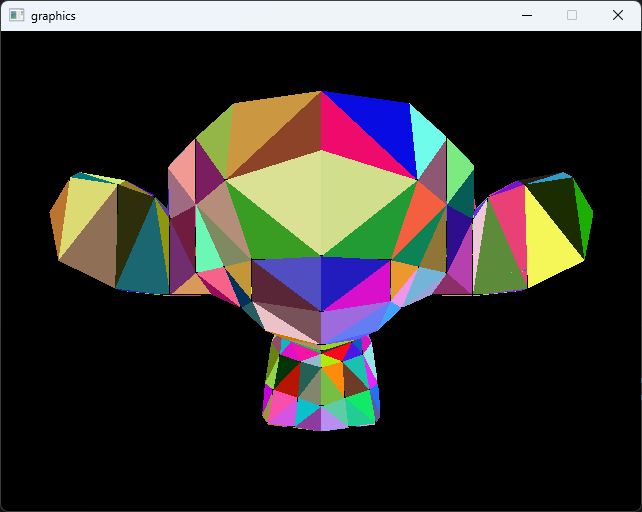

The texture is supposed to look like this:

This texture was obtained by converting pixel format to SDL_PIXELFORMAT_RGB32. Since RGB96_FLOAT format is supported, however, this conversion should not be required.

[silentstranger]

Here is the source code:

#include <stdio.h>
#include <stdlib.h>
#include <time.h>
#include <glm.h>
#include <SDL3/SDL.h>

static SDL_Window *window = NULL;
static SDL_Renderer *renderer = NULL;
static SDL_Texture *texture = NULL;

struct {
    int nposition;
    int nnormal;
    int ntexcoord;
    int nface;
    int ncolor;
    vec3 positions[1 << 14];
    vec2 normals[1 << 14];
    vec2 texcoords[1 << 14];
    vec3 faces[1 << 14];
    vec3 colors[1 << 14];
    vec3 buffer[1 << 14];
    vec3 cbuffer[480][640];
    float dbuffer[480][640];
    uint32_t mcbuffer[480][640];
}
data;

int init(void)
{
    SDL_SetAppMetadata("Graphics", "1.0", "com.graphics");

    if (!SDL_Init(SDL_INIT_VIDEO))
    {
        SDL_Log("Failed to init SDL: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    if (!SDL_CreateWindowAndRenderer("graphics", 640, 480, 0, &window, &renderer))
    {
        SDL_Log("Failed to init window / renderer: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    texture = SDL_CreateTexture(renderer, SDL_PIXELFORMAT_RGB96_FLOAT, SDL_TEXTUREACCESS_STREAMING, 640, 480);
    if (!texture)
    {
        SDL_Log("Failed to create texture: %s", SDL_GetError());
        return SDL_APP_FAILURE;
    }

    return SDL_APP_CONTINUE;
}

int app_event(SDL_Event *event)
{
    if (event->type == SDL_EVENT_QUIT)
        return SDL_APP_SUCCESS;
    return SDL_APP_CONTINUE;
}

int app_iterate(void)
{
    void triangle_scanline(vec2 *, uint8_t *);
    void triangle_edge(vec2 *, uint8_t *);
    void render_obj(void);

    SDL_RenderClear(renderer);
    render_obj();
    SDL_RenderPresent(renderer);
    SDL_Delay(10);
    return SDL_APP_CONTINUE;
}

void quit(void) {}

void triangle_scanline(vec2 t[3], uint8_t col[3])
{
    SDL_SetRenderDrawColor(renderer, col[0], col[1], col[2], 255);
    if (t[0][1] > t[1][1]) glm_vec2_swap(t[0], t[1]);
    if (t[0][1] > t[2][1]) glm_vec2_swap(t[0], t[2]);
    if (t[1][1] > t[2][1]) glm_vec2_swap(t[1], t[2]);
    float s1 = (t[1][0] - t[0][0]) / (t[1][1] - t[0][1]);
    float s2 = (t[2][0] - t[0][0]) / (t[2][1] - t[0][1]);
    float s3 = (t[2][0] - t[1][0]) / (t[2][1] - t[1][1]);
    float x1 = t[0][0], x2 = t[0][0];
    for (int y = t[0][1]; y < t[1][1]; y++)
    {
        SDL_RenderLine(renderer, x1, y, x2, y);
        x1 += s1; x2 += s2;
    }
    for (int y = t[1][1]; y < t[2][1]; y++)
    {
        SDL_RenderLine(renderer, x1, y, x2, y);
        x1 += s3; x2 += s2;
    }
    SDL_SetRenderDrawColor(renderer, 0, 0, 0, 0);
}

float edge(vec2 a, vec2 b, vec2 p)
{
    return -1 * ((p[0] - a[0]) * (b[1] - a[1]) - (p[1] - a[1]) * (b[0] - a[0])) / 2;
}

void triangle_edge(vec3 t[3], uint8_t col[3])
{
    int xmin = min(min(t[0][0], t[1][0]), t[2][0]);
    int xmax = max(max(t[0][0], t[1][0]), t[2][0]);
    int ymin = min(min(t[0][1], t[1][1]), t[2][1]);
    int ymax = max(max(t[0][1], t[1][1]), t[2][1]);
    for (int y = ymin; y < ymax; y++)
        for (int x = xmin; x < xmax; x++)
        {
            vec2 p = {x, y};
            float s1 = edge(t[0], t[1], p);
            float s2 = edge(t[1], t[2], p);
            float s3 = edge(t[2], t[0], p);
            if (s1 >= 0 && s2 >= 0 && s3 >= 0)
            {
                float s = s1 + s2 + s3;
                if (s == 0) continue;
                float invs = 1 / s;
                vec3 weights = {s1 * invs, s2 * invs, s3 * invs};
                vec3 depths = {t[0][2], t[1][2], t[2][2]};
                vec3 vcol = {col[0], col[1], col[2]};
                float depth = glm_vec3_dot(weights, depths);
                if (depth > data.dbuffer[y][x]) continue;
                glm_vec3_copy(vcol, data.cbuffer[y][x]);
                data.dbuffer[y][x] = depth;
            }
        }
}

int parse_obj(char *filename)
{
    FILE *f = fopen(filename, "r");
    if (!f)
    {
        printf("failed to parse obj file: file does not exist\n");
        return 0;
    }
    char s[16];
    while (fscanf(f, "%s", &s) > 0)
    {
        if (!strcmp(s, "v"))
        {
            int fields = fscanf(f, "%f %f %f\n",
                &data.positions[data.nposition][0],
                &data.positions[data.nposition][1],
                &data.positions[data.nposition][2]
            );
            if (fields < 3)
            {
                printf("failed to parse obj file: invalid position format\n");
                return 0;
            }
            data.nposition++;
        }
        else if (!strcmp(s, "vn"))
        {
            int fields = fscanf(f, "%f %f\n",
                &data.normals[data.nnormal][0],
                &data.normals[data.nnormal][1]
            );
            if (fields < 2)
            {
                printf("failed to parse obj file: invalid normal format\n");
                return 0;
            }
            data.nnormal++;
        }
        else if (!strcmp(s, "vt"))
        {
            int fields = fscanf(f, "%f %f\n",
                &data.texcoords[data.ntexcoord][0],
                &data.texcoords[data.ntexcoord][1]
            );
            if (fields < 2)
            {
                printf("failed to parse obj file: invalid texcoord format\n");
                return 0;
            }
            data.ntexcoord++;
        }
        else if (!strcmp(s, "f"))
        {
            int fields = fscanf(f, "%f/%f/%f %f/%f/%f %f/%f/%f\n",
                &data.faces[data.nface][0],
                &data.faces[data.nface][1],
                &data.faces[data.nface][2],
                &data.faces[data.nface+1][0],
                &data.faces[data.nface+1][1],
                &data.faces[data.nface+1][2],
                &data.faces[data.nface+2][0],
                &data.faces[data.nface+2][1],
                &data.faces[data.nface+2][2]
            );
            if (fields < 3)
            {
                printf("failed to parse obj file: invalid face format\n");
                return 0;
            }
            data.nface += 3;
        }
        else
        {
            char str[1 << 10];
            fgets(str, (1 << 10), f);
        }
    }
    for (int i = 0; i < data.nface; i++)
        glm_vec3_copy(
            (vec3){
                rand() % 255, rand() % 255, rand() % 255
            },
            data.colors[i]
        );
    return 1;
}

void print_obj(void)
{
    for (int i = 0; i < data.nposition; i++)
        printf("%f %f %f\n",
            data.positions[i][0],
            data.positions[i][1],
            data.positions[i][2]);
    for (int i = 0; i < data.nnormal; i++)
        printf("%f %f\n",
            data.normals[i][0],
            data.normals[i][1]);
    for (int i = 0; i < data.ntexcoord; i++)
        printf("%f %f\n",
            data.texcoords[i][0],
            data.texcoords[i][1]);
    for (int i = 0; i < data.nface; i++)
        printf("%4.0f %4.0f %4.0f\n",
            data.faces[i][0],
            data.faces[i][1],
            data.faces[i][2]);
}

float rad(float theta) { return theta * 3.1415 / 180; }

void render_obj(void)
{
    static float theta = 0.0f;
    // theta++;
    vec3 ihat_yaw = {cos(rad(theta)), 0, sin(rad(theta))};
    vec3 jhat_yaw = {0, 1, 0};
    vec3 khat_yaw = {-sin(rad(theta)), 0, cos(rad(theta))};
    vec3 ihat_pitch = {1, 0, 0};
    vec3 jhat_pitch = {0, cos(rad(theta)), -sin(rad(theta))};
    vec3 khat_pitch = {0, sin(rad(theta)), cos(rad(theta))};

    for (int i = 0; i < data.nposition; i++)
    {
        vec3 v;
        glm_vec3_copy(data.positions[i], v);
        glm_vec3_transform(ihat_yaw, jhat_yaw, khat_yaw, v);
        glm_vec3_add(v, (vec3){0, 0, 5}, v);
        glm_vec3_copy(v, data.buffer[i]);
    }

    for (int i = 0; i < data.nposition; i++)
    {
        data.buffer[i][0] =
            (data.buffer[i][0] *
                (480 / (2 * tan(rad(30 / 2))) / data.buffer[i][2]))
                + (640 / 2);
        data.buffer[i][1] =
            480 - ((data.buffer[i][1] *
                (480 / (2 * tan(rad(30 / 2))) / data.buffer[i][2]))
                + (480 / 2));
    }

    for (int i = 0; i < data.nface; i += 3)
    {
        vec3 t[3];
        glm_vec3_copy(data.buffer[(int) data.faces[i][0] - 1], t[0]);
        glm_vec3_copy(data.buffer[(int) data.faces[i+1][0] - 1], t[1]);
        glm_vec3_copy(data.buffer[(int) data.faces[i+2][0] - 1], t[2]);
        triangle_edge(
            t,
            (uint8_t [3]) {
                data.colors[i][0], data.colors[i][1], data.colors[i][2]
            }
        );
    }

    const SDL_PixelFormatDetails *format = SDL_GetPixelFormatDetails(SDL_PIXELFORMAT_RGBA32);
    for (int y = 0; y < 480; y++)
        for (int x = 0; x < 640; x++)
            data.mcbuffer[y][x] = SDL_MapRGB(
                format, NULL,
                (uint8_t) data.cbuffer[y][x][0],
                (uint8_t) data.cbuffer[y][x][1],
                (uint8_t) data.cbuffer[y][x][2]
            );

    int pitch;
    void *pixels = NULL;
    SDL_LockTexture(texture, NULL, &pixels, &pitch);
    memcpy(pixels, data.cbuffer, 640 * 480 * sizeof(vec3));
    pitch = 640 * sizeof(vec3);
    SDL_UnlockTexture(texture);
    SDL_RenderTexture(renderer, texture, NULL, NULL);

    memset(data.mcbuffer, 0, 640 * 480 * sizeof(uint32_t));
    memset(data.cbuffer, 0, 640 * 480 * sizeof(vec3));
    for (int y = 0; y < 480; y++)
        for (int x = 0; x < 640; x++)
            data.dbuffer[y][x] = INFINITY;
}

int main(int argc, char **argv)
{
    for (int y = 0; y < 480; y++)
        for (int x = 0; x < 640; x++)
            data.dbuffer[y][x] = INFINITY;

    int status = parse_obj("../../monkey.obj");
    if (!status)
        return 1;

    status = init();
    if (status != SDL_APP_CONTINUE)
        return status;

    SDL_Event e;
    while ((status = app_iterate()) == SDL_APP_CONTINUE)
        while (SDL_PollEvent(&e) != 0)
            if ((status = app_event(&e)) != SDL_APP_CONTINUE)
                return (status == SDL_APP_SUCCESS) ? 0 : status;
}

[elefantinho]

byte-order, padding, strides and alignment are subjects that always terrify me
I’m not trying to answer. interesting problem, someone will certainly help you and I hope so

edit: the size of stuff always terrify me as well. I always _Static_assert(4 == sizeof (float)); etc. to appease my uncertainty

[slouken]

There is no renderer that supports SDL_PIXELFORMAT_RGB96_FLOAT natively. It’s always converted to another format when used in the renderer, and this is a slow conversion path.

That said, in theory this should work. Can you report a bug on GitHub with a complete minimal example that we can use to reproduce this? Also it would be helpful to know what platform and renderer you’re using.

[silentstranger]

The issue is resolved. The color data was not normalized. Floating-point color data must be in range [0, 1].
