Texture only shows briefly when closing the SDL window (SDL3 MacOS)

SDL Development
1

Hello,

I am following LazyFoo’s tutorial on using textures, as far as I can see my setup is correct, but the loaded texture only shows for like one frame when I close the window, and not the whole time the window is open.

I’m using macOS Tahoe 26.3, SDL3, screen resolution 2560x1440 144hz.

This the my main.cpp:

#include <print>

#include <SDL3/SDL.h>

#include "main.h"
#include "texture.h"

constexpr int screenWidth {1024};
constexpr int screenHeight {768};

constexpr int renderWidth {320};
constexpr int renderHeight {180};

auto title = "First Game";

SDL_Window *window {nullptr};
SDL_Renderer *renderer {nullptr};
Texture texture;

void close() {
    SDL_DestroyWindow(window);
    SDL_DestroyRenderer(renderer);
    window = nullptr;
    renderer = nullptr;
    SDL_Quit();
}

int main() {

    if (!SDL_Init(SDL_INIT_VIDEO)) {
        std::println("SDL could not initialize! SDL Error: {}", SDL_GetError());
        return 1;
    }

    if (!SDL_CreateWindowAndRenderer(title, screenWidth, screenHeight, SDL_WINDOW_RESIZABLE, &window, &renderer)) {
        std::println("Failed to create window and renderer! SDL_Error: {}", SDL_GetError());
        return 1;
    }

    // Scale the window resolution to a render resolution of 320x180
    if (!SDL_SetRenderLogicalPresentation(renderer, renderWidth, renderHeight, SDL_LOGICAL_PRESENTATION_LETTERBOX)) {
        std::println("Setting Render logical presentation failed! SDL_Error: {}\n", SDL_GetError());
        return 1;
    }

    if (!SDL_SetRenderVSync(renderer, 1)) { // 0 disabled, 1 enabled
        std::println("Could not set VSYNC! SDL_Error: {}", SDL_GetError());
        return 1;
    }

    if (!texture.loadFromFile(*renderer, "../../images/loaded.png")) {
        std::println("Failed to load media! SDL Error: {}", SDL_GetError());
        return 1;
    }

    bool quit {false};

    SDL_Event event;
    SDL_zero(event);

    while (!quit) {
        while (SDL_PollEvent(&event)) {
            if (event.type == SDL_EVENT_QUIT)
                quit = true;
        }
    }

    SDL_SetRenderTarget(renderer, nullptr);
    SDL_SetRenderDrawColor(renderer, 255, 255, 255, 255); // white
    SDL_RenderClear(renderer);

    texture.render(*renderer ,0.f, 0.f);

    SDL_RenderPresent(renderer); // only call once per frame

    close();

    return 0;
}

texture.cpp:

#include "texture.h"

#include <print>

#include "SDL3_image/SDL_image.h"

Texture::Texture()
    : mTexture{nullptr}, mWidth{0}, mHeight{0}
{}

Texture::~Texture() {
    destroy();
}

bool Texture::loadFromFile(SDL_Renderer& renderer, const std::string& path) {
    destroy();

    SDL_Surface* loadedSurface = IMG_Load(path.c_str());
    if (loadedSurface == nullptr)
    {
        std::println("Could not load surface '{}'", SDL_GetError());
        return false;
    }

    if (mTexture = SDL_CreateTextureFromSurface(&renderer, loadedSurface); mTexture == nullptr) {
        std::println("Could not create texture from surface '{}'", SDL_GetError());
        return false;
    }

    mWidth = loadedSurface->w;
    mHeight = loadedSurface->h;

    SDL_DestroySurface(loadedSurface);

    return mTexture;
}

void Texture::destroy() {
    SDL_DestroyTexture(mTexture);
    mTexture = nullptr;
    mWidth = 0;
    mHeight = 0;
}

void Texture::render(SDL_Renderer& renderer, float x, float y) const {
    SDL_FRect dstRect{x, y, static_cast<float>(mWidth), static_cast<float>(mHeight)};
    SDL_RenderTexture(&renderer, mTexture, nullptr, &dstRect);
}

int Texture::getWidth() const {
    return mWidth;
}

int Texture::getHeight() const {
    return mHeight;
}

bool Texture::isLoaded() const {
    return mTexture != nullptr;
}

Setting Vsync to 0 or 1 in the Init phase does not seem to make a difference either.

Using SDL_SetRenderTarget(renderer, nullptr); or not also didn’t make a difference.

Does anyone know what could cause this?

Thanks in advance for any insights!

2

Hi, The program does not work as expected because the refresh loop (the main game loop) is incorrectly positioned in the code. In an application using SDL, you must always have a main loop (often called a game loop) that continuously does three things:

  • Read events (keyboard, mouse, window closure, etc.)
  • Update the program status
  • Draw the image on the screen
  • Display the rendering

In your code, the main loop is present.

while (!quit) {
    while (SDL_PollEvent(&event)) {
        if (event.type == SDL_EVENT_QUIT)
            quit = true;
    }
}

But the problem is that the rendering (the drawing on the screen) is placed after this loop.

The rendering code must be placed inside the main loop, like this:

#include <SDL3/SDL.h>
#include <format>
#include <iostream>
#include <string>
#include <map>
#include <memory>
#include "Texture.hpp"

constexpr int screenWidth{720};
constexpr int screenHeight{680};

constexpr int renderWidth{320};
constexpr int renderHeight{180};

auto title = "First Game";

SDL_Window* window{nullptr};
SDL_Renderer* renderer{nullptr};
std::map<std::string, std::shared_ptr<Texture>> textures;

bool init() {
    if (!SDL_Init(SDL_INIT_VIDEO)) {
        std::cerr << std::format("SDL could not initialize! SDL Error: {}\n", SDL_GetError());
        return false;
    }

    if (!SDL_CreateWindowAndRenderer(title, screenWidth, screenHeight,
                                     SDL_WINDOW_RESIZABLE,
                                     &window, &renderer)) {
        std::cerr << std::format("Failed to create window and renderer! SDL_Error: {}\n", SDL_GetError());
        return false;
    }

    if (!SDL_SetRenderVSync(renderer, 1)) {
        std::cerr << std::format("Could not set VSYNC! SDL_Error: {}\n", SDL_GetError());
        return false;
    }

    return true;
}

bool load() {
    const char* basePathC = SDL_GetBasePath();
    if (!basePathC) {
        std::cerr << std::format("Failed to get base path! SDL_Error: {}\n", SDL_GetError());
        return false;
    }

    std::string basePath{basePathC};

    textures["red_sandstone"] =
        std::make_shared<Texture>(basePath + "assets/red_sandstone.png");

    textures["stone"] =
        std::make_shared<Texture>(basePath + "assets/stone.png");

    for (auto& [name, texture] : textures) {
        if (!texture || !texture->load(*renderer)) {
            std::cerr << std::format("Failed to load texture '{}'. SDL Error: {}\n",
                                     name, SDL_GetError());
            return false;
        }
    }

    return true;
}

void loop() {
    bool quit{false};
    SDL_Event event;

    while (!quit) {
        while (SDL_PollEvent(&event)) {
            if (event.type == SDL_EVENT_QUIT)
                quit = true;
        }

        SDL_SetRenderDrawColorFloat(renderer, 0.1f, 0.1f, 0.1f, 1.0f);
        SDL_RenderClear(renderer);

        if (textures.contains("stone"))
            textures["stone"]->render(*renderer, 0.0f, 0.0f, 2.0f);

        if (textures.contains("red_sandstone"))
            textures["red_sandstone"]->render(*renderer, 64.0f, 0.0f, 2.0f);


        SDL_SetRenderScale(renderer, 4.0f, 4.0f);
        SDL_SetRenderDrawColorFloat(renderer, 0.9f, 0.9f, 0.9f, 1.0f);
        SDL_RenderDebugText(renderer, 0, 64, "HELLO!");
        SDL_SetRenderScale(renderer, 1.0f, 1.0f);

        SDL_RenderPresent(renderer);
    }
}

void shutdown() {
    // Resources (SDL_Texture, SDL_Renderer, SDL_window, SDL) are released in the reverse order in which they were created.
    for (auto& [name, texture] : textures) {
        if (texture) {
            texture->destroy();
            texture.reset();
        }
    }
    textures.clear();

    if (renderer) SDL_DestroyRenderer(renderer);
    if (window) SDL_DestroyWindow(window);

    renderer = nullptr;
    window = nullptr;

    SDL_Quit();
}

int main() {
    if (!init())
        return 1;

    if (!load()) {
        shutdown();
        return 1;
    }

    loop();
    shutdown();

    return 0;
}

Texture.hpp

#pragma once

#include <SDL3/SDL.h>
#include <string>

class Texture {
public:
    Texture(const std::string& path);

    ~Texture();

    bool load(SDL_Renderer& renderer);

    void destroy();

    void render(SDL_Renderer& renderer, float x, float y, float scale) const;

    int getWidth() const;

    int getHeight() const;

    bool isLoaded() const;

private:
    std::string mPath;
    SDL_Texture *mTexture;
    int mWidth, mHeight;
};

Texture.cpp

#include "Texture.hpp"
#include <SDL3_image/SDL_image.h>
#include <format>
#include <iostream>
#include <string>

Texture::Texture(const std::string& path)
    : mPath(path), mTexture{nullptr}, mWidth{0}, mHeight{0}
{}

Texture::~Texture() {
    destroy();
}

bool Texture::load(SDL_Renderer& renderer) {
    destroy();

    SDL_Surface* loadedSurface = IMG_Load(mPath.c_str());
    if (loadedSurface == nullptr) {
        std::cerr << std::format("Could not load surface '{}'\n", SDL_GetError());
        return false;
    }

    if (mTexture = SDL_CreateTextureFromSurface(&renderer, loadedSurface); mTexture == nullptr) {
        std::cerr << std::format("Could not create texture from surface '{}'\n", SDL_GetError());
        return false;
    }

    mWidth = loadedSurface->w;
    mHeight = loadedSurface->h;

    SDL_DestroySurface(loadedSurface);

    return mTexture;
}

void Texture::destroy() {
    if (mTexture) SDL_DestroyTexture(mTexture);
    mTexture = nullptr;
    mWidth = 0;
    mHeight = 0;
}

void Texture::render(SDL_Renderer& renderer, float x, float y, float scale) const {
    SDL_FRect dstRect{x, y, static_cast<float>(mWidth)*scale, static_cast<float>(mHeight)*scale};
    SDL_RenderTexture(&renderer, mTexture, nullptr, &dstRect);
}

int Texture::getWidth() const {
    return mWidth;
}

int Texture::getHeight() const {
    return mHeight;
}

bool Texture::isLoaded() const {
    return mTexture != nullptr;
}

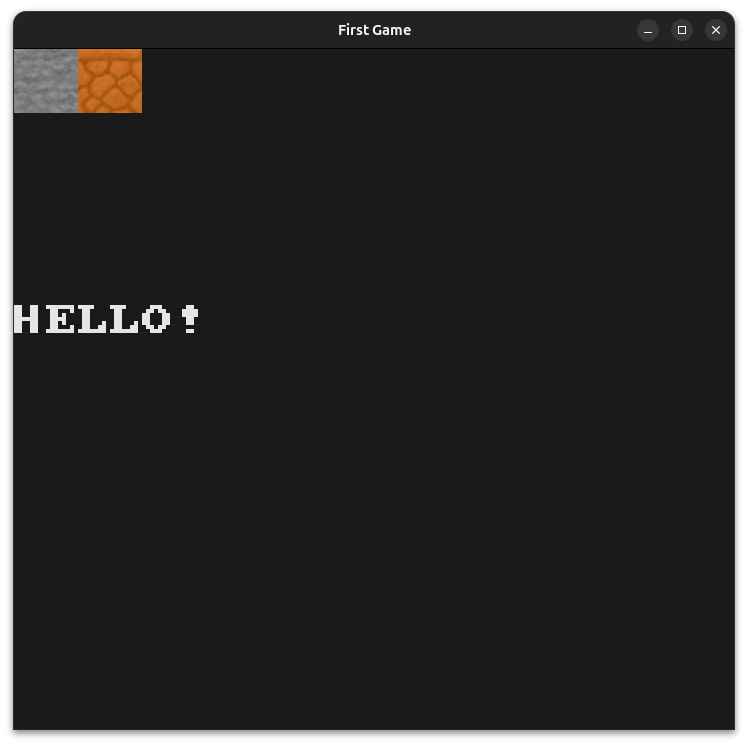

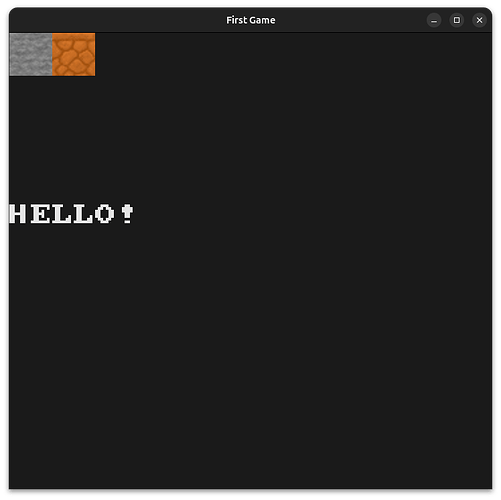

image748×746 15.7 KB

Good luck :slight_smile:

3

Thanks so much for your answer! :slight_smile: After staring at it for a couple hours, I ran out of ideas as to what could cause it :smiley:

And thanks for the slightly different code snippet example, some useful little things in there :slight_smile:

Thanks
