I am new to graphics in general, so I am trying to learn from others.
After drawing a triangle, a quad and then a sprite on top, I have been trying to get a batch of them on screen using instancing.
I learnt batching / instancing from 2 articles and a GitHub ticket:
- Moonside Games - SDL GPU API Concepts: Sprite Batcher
- Glusoft SDL3 Tutorial - Sprite Batching with SDL3_gpu for Efficient Rendering
- GitHub Ticket - GPU frametimes appear to be higher than expected in specific scenarios
However, I have been unsuccessful in rendering out all the sprites in the list.
Only 1 sprite shows up, as if the SSBO is not getting sent to the GPU.
bunnymark.odin
package main
import "base:runtime"
import "core:log"
import "core:mem"
import "core:fmt"
import "core:math"
import "core:math/linalg"
import sdl "vendor:sdl3"
import img "vendor:sdl3/image"
default_context: runtime.Context
BUNNIES :: 5
MAX_FPS :: f64(60)
FIXED_DELTA_TIME :: 1 / MAX_FPS
MAX_FRAME_SKIP :: 5
gpu: ^sdl.GPUDevice
window: ^sdl.Window
pipeline: ^sdl.GPUGraphicsPipeline
sampler: ^sdl.GPUSampler
win_size: [2]i32
// glslc shader.glsl.frag -o shader.spv.frag
// glslc shader.glsl.vert -o shader.spv.vert
// spirv-cross --msl shader.spv.frag --output shader_frag.metal
// spirv-cross --msl shader.spv.vert --output shader_vert.metal
frag_shader_code := #load("shader_frag.metal")
vert_shader_code := #load("shader_vert.metal")
Vec3 :: [3]f32
Vec2 :: [2]f32
Vec4 :: [4]f32
SpriteData :: struct #max_field_align(16) {
position: Vec2,
}
init :: proc() {
sdl.SetLogPriorities(.VERBOSE)
ok := sdl.Init({.VIDEO}); assert(ok)
sdl.SetHint(sdl.HINT_RENDER_GPU_DEBUG, "1")
sdl.SetHint(sdl.HINT_RENDER_VULKAN_DEBUG, "1")
window = sdl.CreateWindow("Bunnymark SDL3", 1280, 780, {}); assert(window != nil)
ok = sdl.RaiseWindow(window); assert(ok)
gpu = sdl.CreateGPUDevice({.MSL, .DXIL, .SPIRV}, true, nil); assert(gpu != nil)
ok = sdl.ClaimWindowForGPUDevice(gpu, window); assert(ok)
// Toggle VSync in SDL GPU API - to test maximum FPS
ok = sdl.SetGPUSwapchainParameters(gpu, window, .SDR, .IMMEDIATE); assert(ok)
ok = sdl.GetWindowSize(window, &win_size.x, &win_size.y); assert(ok)
}
setup_pipeline :: proc() {
vert_shader := sdl.CreateGPUShader(
gpu,
{
code_size = len(vert_shader_code),
code = raw_data(vert_shader_code),
entrypoint = "main0",
format = {.MSL},
stage = .VERTEX,
num_uniform_buffers = 1, // for UBO
num_samplers = 0,
num_storage_buffers = 1, // for SSBO
num_storage_textures = 0,
props = 0
},
)
frag_shader := sdl.CreateGPUShader(
gpu,
{
code_size = len(frag_shader_code),
code = raw_data(frag_shader_code),
entrypoint = "main0",
format = {.MSL},
stage = .FRAGMENT,
num_uniform_buffers = 0,
num_samplers = 1,
num_storage_buffers = 0,
num_storage_textures = 0,
props = 0
},
)
pipeline = sdl.CreateGPUGraphicsPipeline(
gpu,
{
fragment_shader = frag_shader,
vertex_shader = vert_shader,
primitive_type = .TRIANGLELIST,
rasterizer_state = {
fill_mode = .FILL,
cull_mode = .NONE, // disable face culling, in case sprite is rendered
front_face = .COUNTER_CLOCKWISE, // not critical when culling=NONE
depth_bias_constant_factor = 0.0,
depth_bias_slope_factor = 0.0,
},
// --- Depth-stencil state ---
depth_stencil_state = {
enable_depth_test = false, // disable depth testing
enable_depth_write = false, // don't write to depth buffer
compare_op = .ALWAYS,
},
target_info = {
num_color_targets = 1,
color_target_descriptions = &(sdl.GPUColorTargetDescription {
format = sdl.GetGPUSwapchainTextureFormat(gpu, window),
blend_state = (sdl.GPUColorTargetBlendState){
enable_blend = true,
alpha_blend_op = .ADD,
color_blend_op = .ADD,
color_write_mask = {.R, .G, .B, .A},
enable_color_write_mask = true,
src_alpha_blendfactor = .SRC_ALPHA,
dst_alpha_blendfactor = .ONE_MINUS_SRC_ALPHA,
src_color_blendfactor = .SRC_ALPHA,
dst_color_blendfactor = .ONE_MINUS_SRC_ALPHA,
}
}),
depth_stencil_format = .INVALID // no depth buffer
},
},
)
sdl.ReleaseGPUShader(gpu, vert_shader)
sdl.ReleaseGPUShader(gpu, frag_shader)
sampler = sdl.CreateGPUSampler(gpu, {
min_filter = .NEAREST,
mag_filter = .NEAREST,
mipmap_mode = .NEAREST,
address_mode_u = .CLAMP_TO_EDGE,
address_mode_v = .CLAMP_TO_EDGE,
address_mode_w = .CLAMP_TO_EDGE,
})
}
load_bunnies_and_texture :: proc() -> (^sdl.GPUBuffer, ^sdl.GPUTexture) {
surface := img.Load("./assets/wabbit_alpha.png"); assert(surface != nil)
pixels_byte_size := surface.w * surface.h * 4
defer sdl.DestroySurface(surface)
texture := sdl.CreateGPUTexture(gpu, {
type = .D2,
format = .R8G8B8A8_UNORM, // Each color 8 bits, and Unorm means value between 0 - 1 inside shader
usage = {.SAMPLER},
width = u32(surface.w),
height = u32(surface.h),
layer_count_or_depth = 1,
num_levels = 1,
})
sprites_instances: [dynamic]SpriteData = make([dynamic]SpriteData, 0, BUNNIES)
defer delete(sprites_instances)
for i := 0; i < BUNNIES; i += 1 {
append(&sprites_instances, SpriteData {
position = Vec2{
2 * f32(i32(sdl.rand(1280)) % 1280) - 1,
2 * f32(i32(sdl.rand(720)) % 720) - 1,
},
})
}
num_sprites_instances := len(sprites_instances)
sprites_instances_byte_size := num_sprites_instances * size_of(SpriteData)
bunnies := sdl.CreateGPUBuffer(gpu, {
usage = {.GRAPHICS_STORAGE_READ},
size = u32(sprites_instances_byte_size)
})
transfer_buf := sdl.CreateGPUTransferBuffer(gpu, {
usage = .UPLOAD,
size = u32(sprites_instances_byte_size)
})
tex_transfer_buf := sdl.CreateGPUTransferBuffer(gpu, {
usage = .UPLOAD,
size = u32(pixels_byte_size)
})
transfer_mem := sdl.MapGPUTransferBuffer(gpu, transfer_buf, false)
mem.copy(transfer_mem, raw_data(sprites_instances), sprites_instances_byte_size)
sdl.UnmapGPUTransferBuffer(gpu, transfer_buf)
tex_transfer_mem := sdl.MapGPUTransferBuffer(gpu, tex_transfer_buf, false)
mem.copy(tex_transfer_mem, surface.pixels, int(pixels_byte_size))
sdl.UnmapGPUTransferBuffer(gpu, tex_transfer_buf)
copy_cmd_buf := sdl.AcquireGPUCommandBuffer(gpu)
copy_pass := sdl.BeginGPUCopyPass(copy_cmd_buf)
sdl.UploadToGPUBuffer(copy_pass,
{ transfer_buffer = transfer_buf },
{ buffer = bunnies, size = u32(sprites_instances_byte_size) },
true
)
sdl.UploadToGPUTexture(copy_pass,
{ transfer_buffer = tex_transfer_buf },
{ texture = texture, w = u32(surface.w), h = u32(surface.h), d = 1 },
false
)
sdl.EndGPUCopyPass(copy_pass)
ok := sdl.SubmitGPUCommandBuffer(copy_cmd_buf); assert(ok)
sdl.ReleaseGPUTransferBuffer(gpu, transfer_buf)
sdl.ReleaseGPUTransferBuffer(gpu, tex_transfer_buf)
return bunnies, texture
}
main :: proc() {
context.logger = log.create_console_logger()
default_context := context
init()
setup_pipeline()
bunnies, texture := load_bunnies_and_texture()
time_accumulator: f64 = 0
frame_count: u16 = 0
updates: int
accumulator, new_time, last_time, dt, alpha: f64 = 0, 0, 0, 0, 0
current_time := f64(sdl.GetPerformanceCounter()) / f64(sdl.GetPerformanceFrequency())
main_loop: for {
free_all(context.temp_allocator)
new_time = f64(sdl.GetPerformanceCounter()) / f64(sdl.GetPerformanceFrequency())
dt = new_time - current_time
current_time = new_time
// Process Events
ev: sdl.Event
for sdl.PollEvent(&ev) {
#partial switch ev.type {
case .QUIT:
break main_loop
case .KEY_DOWN:
if ev.key.scancode == .ESCAPE do break main_loop
}
}
// Render
// Acquire command buffer
cmd_buf := sdl.AcquireGPUCommandBuffer(gpu)
// Acquire swapchain texture
swapchain_tex: ^sdl.GPUTexture
ok := sdl.WaitAndAcquireGPUSwapchainTexture(
cmd_buf,
window,
&swapchain_tex,
nil,
nil,
); assert(ok)
if swapchain_tex != nil {
// Begin render passes
color_target := sdl.GPUColorTargetInfo {
texture = swapchain_tex,
load_op = .CLEAR,
clear_color = {0.5, 1, 0.8, 1},
store_op = .STORE,
cycle = false,
}
render_pass := sdl.BeginGPURenderPass(cmd_buf, &color_target, 1, nil)
// Draw Stuff
// - bind pipeline
sdl.BindGPUGraphicsPipeline(render_pass, pipeline)
// - bind SSBO
sdl.BindGPUVertexStorageBuffers(render_pass, 0, &bunnies, 1)
// - bind sampler and texture to draw call
sdl.BindGPUFragmentSamplers(render_pass, 0, &(sdl.GPUTextureSamplerBinding {
texture = texture,
sampler = sampler,
}), 1)
// - draw calls
sdl.DrawGPUPrimitives(render_pass, 6, BUNNIES, 0, 0)
// End render pass
sdl.EndGPURenderPass(render_pass)
}
// Submit command buffer
ok = sdl.SubmitGPUCommandBuffer(cmd_buf); assert(ok)
frame_count += 1
time_accumulator += dt
if (time_accumulator >= 1) {
fmt.println(math.ceil(f64(frame_count) / time_accumulator))
frame_count = 0
time_accumulator = 0
}
}
}
shader.glsl.vert
#version 460 // Compiling this shader under Vulkan GLSL (i.e. #version 460 + set/binding qualifiers), which follows the GL_KHR_vulkan_glsl specification.
struct SpriteData {
vec2 position;
};
layout (std140, set = 0, binding = 1) readonly buffer DataBuffer {
SpriteData sprites[];
};
layout (location = 0) out vec2 out_uv;
int triangle_indices[6] = int[](
0, 1, 2,
2, 1, 3
);
vec2 vertex_pos[4] = vec2[](
vec2(0.0, 0.0), // tl
vec2(0.0, 1.0), // tr
vec2(1.0, 0.0), // bl
vec2(1.0, 1.0) // br
);
// In Vulkan GLSL, the built-in variable name for the vertex index is different: gl_VertexIndex
void main() {
uint sprite_index = uint(gl_InstanceIndex);
uint vertex_index = uint(triangle_indices[gl_VertexIndex % 6]); // gl_VertexIndex
SpriteData sprite = sprites[sprite_index];
vec2 sprite_coord = vertex_pos[vertex_index];
sprite_coord.xy += sprite.position.xy;
vec2 scaled_pos = vec2(
sprite_coord.x * (52.0 / 1280.0) - (52.0 / 1280.0),
sprite_coord.y * (74.0 / 720.0) - (74.0 / 720.0)
);
vec2 world_pos = scaled_pos + sprite.position.xy;
gl_Position = vec4(world_pos.x, -world_pos.y, 0.0, 1.0);
out_uv = vertex_pos[vertex_index];
}
shader.glsl.frag
#version 460
layout(location = 0) in vec2 in_uv;
layout(set = 2, binding = 0) uniform sampler2D tex_sampler;
layout(location = 0) out vec4 frag_color;
void main() {
frag_color = texture(tex_sampler, in_uv);
}
I am using a Mac M1 device, so to transpile GLSL, here are the commands:
glslc shader.glsl.frag -o shader.spv.frag
glslc shader.glsl.vert -o shader.spv.vert
spirv-cross --msl shader.spv.frag --output shader_frag.metal
spirv-cross --msl shader.spv.vert --output shader_vert.metal

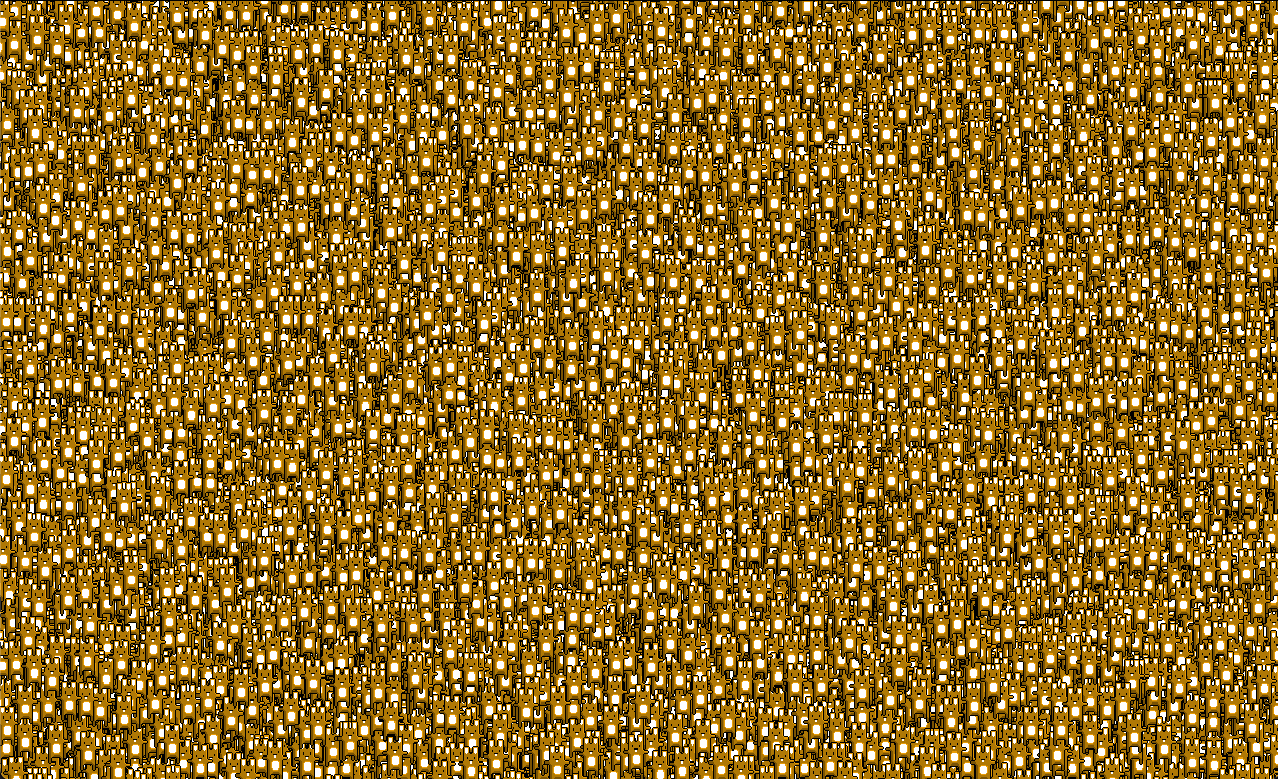

Only 1 Bunny shows up!
StackOverflow ticket: https://stackoverflow.com/questions/79798372/unable-to-render-sprites-in-batches-instances-using-sdl3-gpu-api-and-odin-ssb
GitHub comment: [SDL3] GPU: frametimes appear to be higher than expected in specific scenarios · Issue #11537 · libsdl-org/SDL · GitHub
I always wanted to work with SDL, but never attempted it until Odin lang came along. I want to get good at it.
